TDTG系列斗式提升機
TDTG Bucket Elevator
產品優勢
PRODUCT ADVANTAGE
1、結構緊湊，橫斷面外形尺寸小，可顯著節省占地面積。
2、機頭:頭輪覆膠工藝，增大磨擦系數，提高傳動效率;配有止逆裝置， 避免因斷電引起的堵機問題;有直聯傳動和鏈傳動形式供選；
3、 筒體:采用邊咬合工藝、強度好，密封性佳;增設亞衡管，平衡機體 兩筒體間壓力平衡。
4、機尾:新型軸端密封結構，防止粉塵外泄;采用分體式軸承座結構，保 障設備使用可靠性;可根據用戶要求選配速度檢測及跑偏報警裝置， 確保安全正常生產。
5、適用于粉狀、顆粒狀及小塊狀物料的連續垂直提升，可廣泛應用 于各種規模的飼料廠、糧油、食品、化工、建材以及糧庫、港口 碼頭的散裝物料的提升。
1. Compact structure, small cross-section size, can significantly save the area.
2. Machine head: glue-covering process of head wheel, increase friction coefficient, improve transmission efficiency; equipped with anti-reversing device, avoid the problem of blocking up machine caused by power cut; there are direct transmission and chain transmission forms to choose;
3. Cylinder body: Adopt Edge Biting Technology, good strength, good Sealing; add sub-balance pipe, balance body, pressure balance between the two cylinders.
4. Machine Tail: New Type Shaft end seal structure to prevent dust leakage; adopt split bearing housing structure to ensure the reliability of the equipment; can select speed detection and deviation alarm device according to User's requirements to ensure safe and normal production.
5. It is suitable for the continuous vertical lifting of powder, granule and small block materials, and can be widely used in the lifting of bulk materials in all sizes of feed mills, grain and oil, food, chemical industry, building materials, grain depots, ports and wharves.

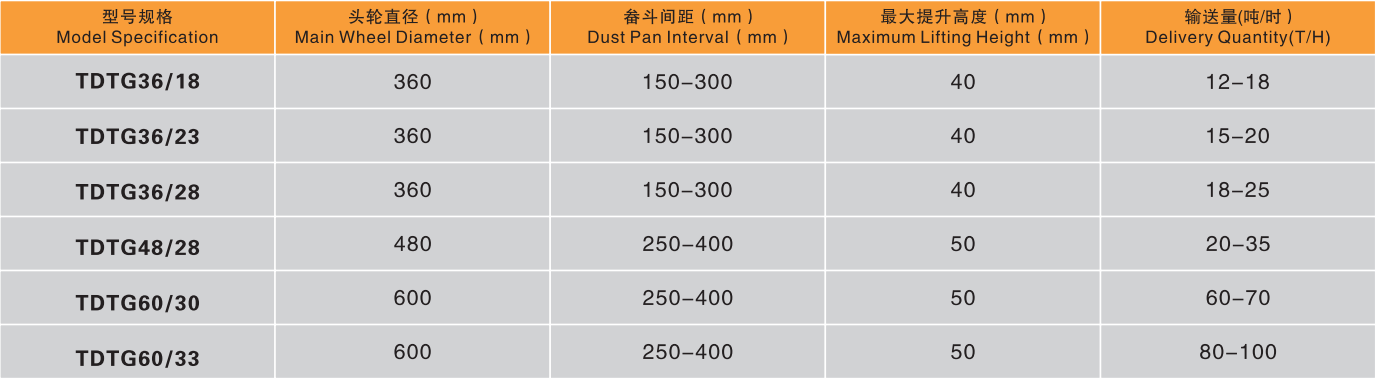

技術參數及型號PARAMETERSAND MODELS
-
